Pressure regulators and FRLs
Prepare the air for the job.
A machine needs more than a compressed-air connection. It needs suitable air quality and pressure at the point of use. Filters remove specified contaminants, regulators control downstream pressure, and lubricators add oil when the equipment requires it.
FRL stands for filter, regulator, and lubricator. The name does not mean every application needs all three. A filter-regulator combines two functions in one unit; many modern pneumatic components operate without added oil. Follow the downstream equipment manufacturer’s requirements.
Three practical applications

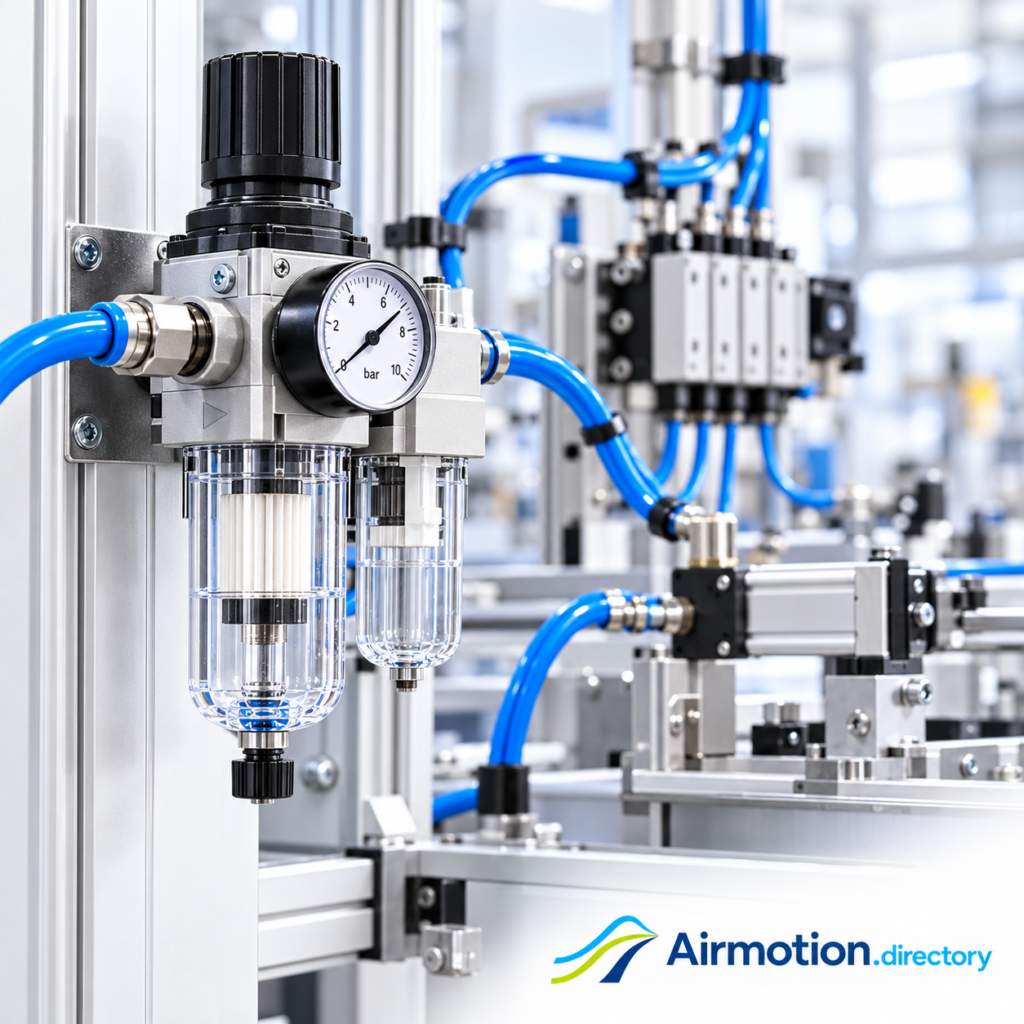

Prepare air at a machine inlet
A machine’s valves and cylinders need an appropriate air supply. A filter-regulator at the inlet can provide local filtration and pressure adjustment before air reaches the valve manifold. Match the unit to the machine’s demand; cylinder speed is a separate flow-control question.

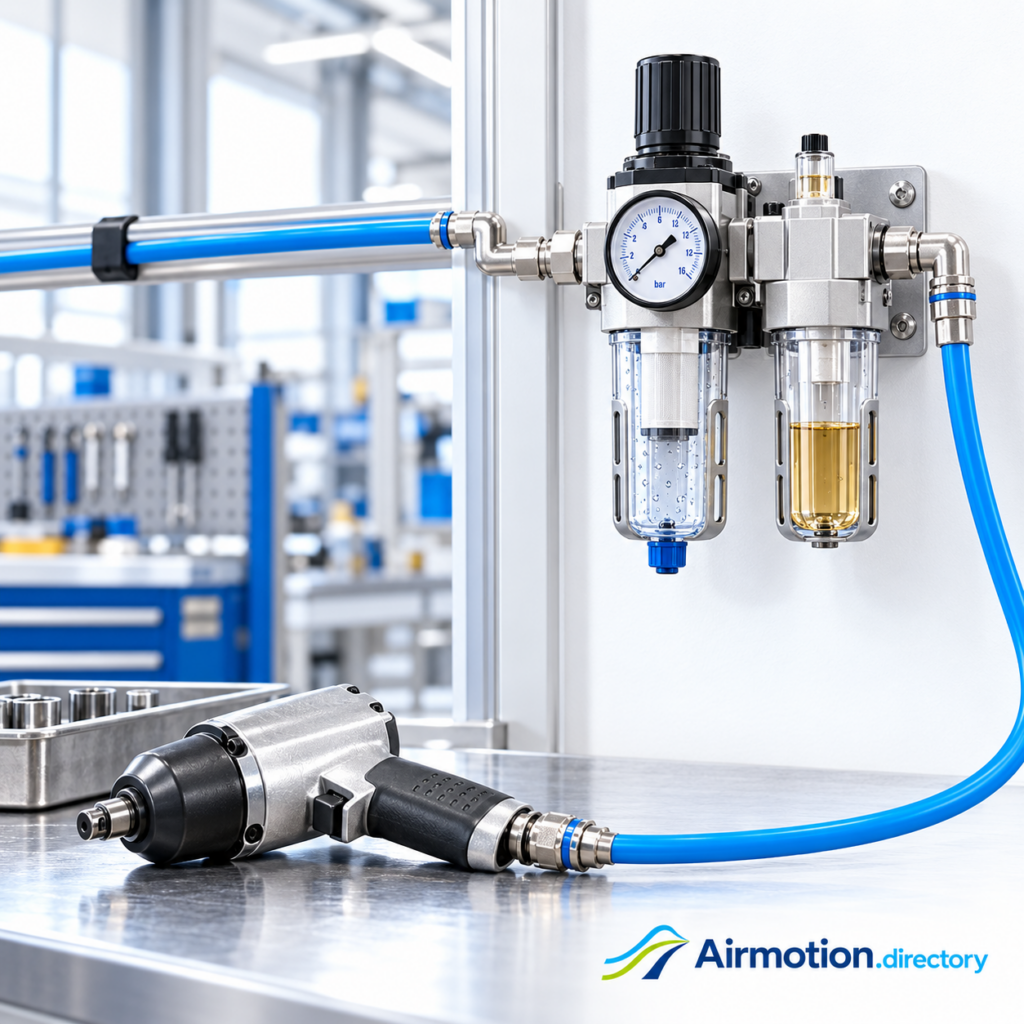

Supply pneumatic assembly tools
An air tool needs its specified pressure while it is operating, not just a satisfactory gauge reading while idle. Point-of-use regulation and filtration help prepare its supply. Add a lubricator only when the tool manufacturer calls for oil in the air.

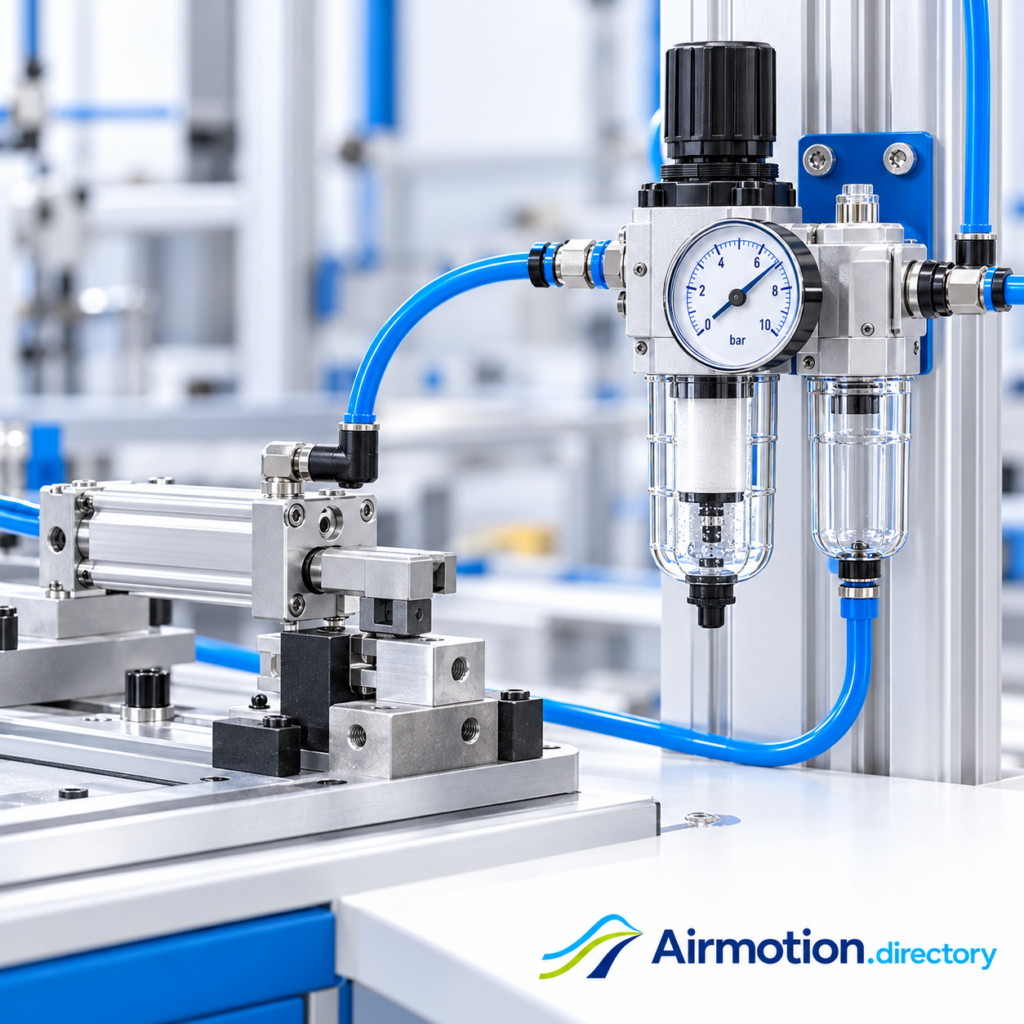

Feed a pneumatic test fixture
An air-powered clamp or test fixture may need a different pressure from the main plant supply. Local filtration and regulation let that branch be prepared for its task. Where pressure accuracy is critical, check whether a precision regulator and separate measurement equipment are required.
These are illustrative applications, not reports of specific customer installations.
Three manufacturers to know
Three examples of manufacturers offering pressure regulation and modular air preparation. Product ranges and configurations differ; this is not a ranking.
Parker
United States
Offers the Global Air Preparation range, including P31, P32, and P33 families. The range includes filters, regulators, filter-regulators, and lubricators in modular configurations. Filter types, bowl materials, and drain options vary with the selected model.
Camozzi
Italy
Offers Series MX air-treatment components, including combined filter-regulators and lubricators. MX filter-regulators integrate filtration and pressure reduction, with manual or automatic condensate-drain options. Gauge arrangements, pressure ranges, and relieving options depend on the configuration.
CKD
Japan
Offers modular FRLs, individual filters and regulators, combined filter-regulators, and lubricators. Its air-preparation range also includes arrangements with shut-off and slow-start valves. Compare the complete configuration rather than assuming every FRL assembly provides the same functions.
What matters when comparing regulators and FRLs?
Check pressure and flow together. Specify inlet conditions, required downstream pressure, and peak air demand. Compare the manufacturer’s flow characteristics and pressure drop at the required operating conditions. A matching port size alone does not establish capacity.
Specify the air quality. Match the filter to the contaminants that need removing, and check condensate drainage, bowl materials, and the operating environment. Particle filtration, oil-aerosol removal, and drying are different tasks. An ordinary FRL is not a complete air-treatment specification.
Add only the functions required. Confirm whether downstream equipment needs added lubrication or prohibits it. Check mounting, airflow direction, connections, and service access. Pressure regulation is not isolation; specify shut-off, exhaust, or slow-start functions separately where required.
